Intelligent Multi-Zone HVAC Scenting Solution for Large Commercial Spaces

Managing ambient scent across multi-functional commercial properties no longer requires deploying multiple standalone machines. The Vinescents VAC8000 Commercial HVAC Scent Diffuser combines four independent atomization systems into a single heavy-duty unit, delivering up to 4,000 m² (12,000 m³ / 40,000 ft²) of consistent coverage. Designed for concealed installation alongside your facility’s central air conditioning system, it connects directly to HVAC ductwork through dedicated tubing—saving valuable floor and public space while ensuring even scent distribution across every designated zone.

Key Features & Commercial Advantages

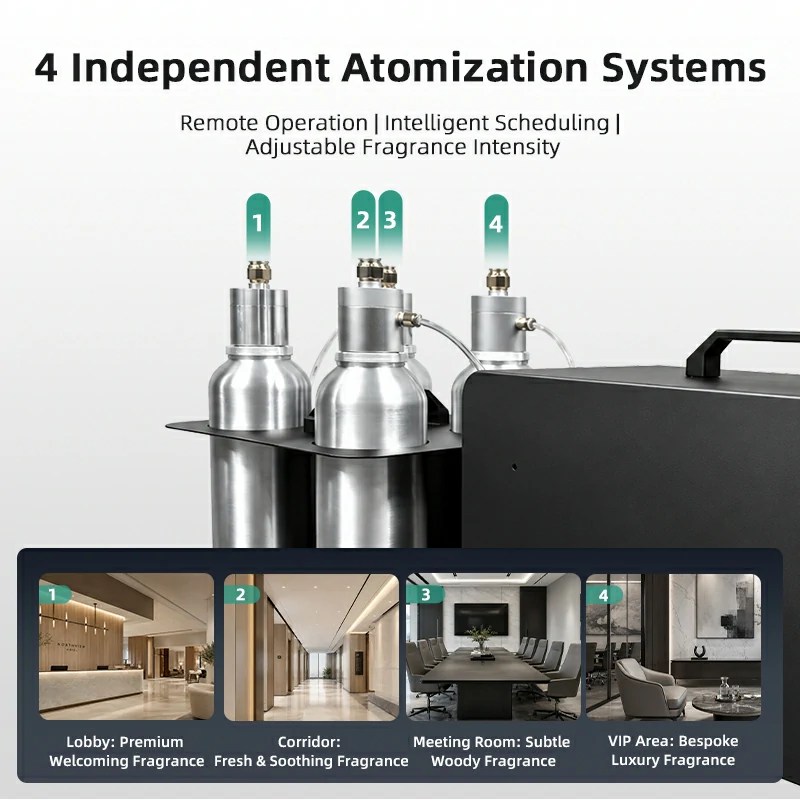

1. Four Independent Atomization Channels for Custom Zoned Scenting

Equipped with four separate atomizing heads and four 1,000 ml fragrance bottles, the VAC8000 allows facility managers to run up to four different fragrances at the same time:

• Zone 1 – Lobby: Deliver a premium welcoming fragrance to create an immediate first impression.

• Zone 2 – Corridor: Maintain a fresh and soothing fragrance throughout high-traffic walkways.

• Zone 3 – Meeting Room: Diffuses a subtle woody fragrance tailored for professional focus.

• Zone 4 – VIP Area: Provide a bespoke luxury fragrance for exclusive guest lounges.

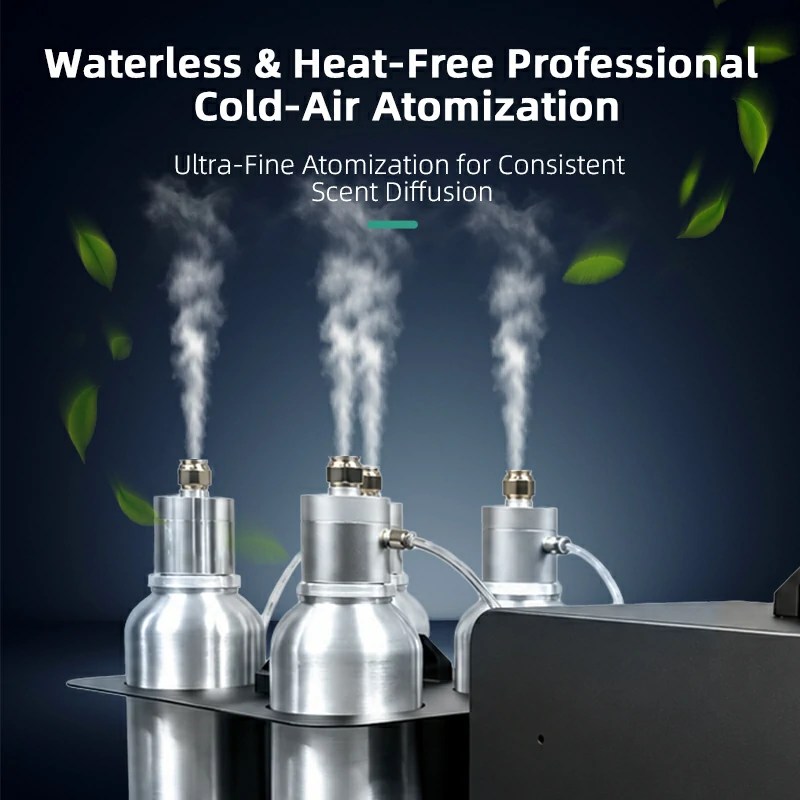

2. Waterless & Heat-Free Professional Cold-Air Atomization

The VAC8000 utilizes advanced cold-air atomization technology that operates completely without water or heat. By converting fragrance oil into an ultra-fine dry mist, it ensures consistent scent diffusion that travels smoothly through air ducts and blends thoroughly with cool HVAC airflow without leaving residue or altering the oil’s original aroma profile.

3. Bluetooth Smart Control & Intelligent Scheduling

Manage your entire multi-zone scenting strategy from your smartphone via Bluetooth Smart Control. Facility operators can easily configure:

• Remote Operation: Control each atomization channel conveniently via the mobile app.

• Intelligent Scheduling: Pre-set operating hours and working days to match business hours and reduce oil waste.

• Adjustable Fragrance Intensity: Fine-tune concentration levels independently for each zone according to space volume and foot traffic.

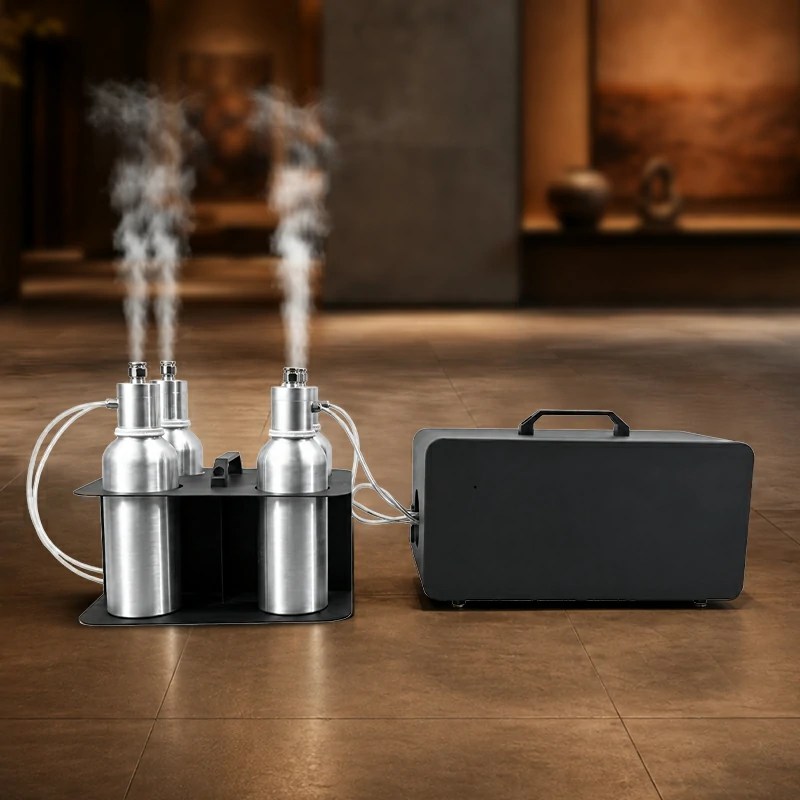

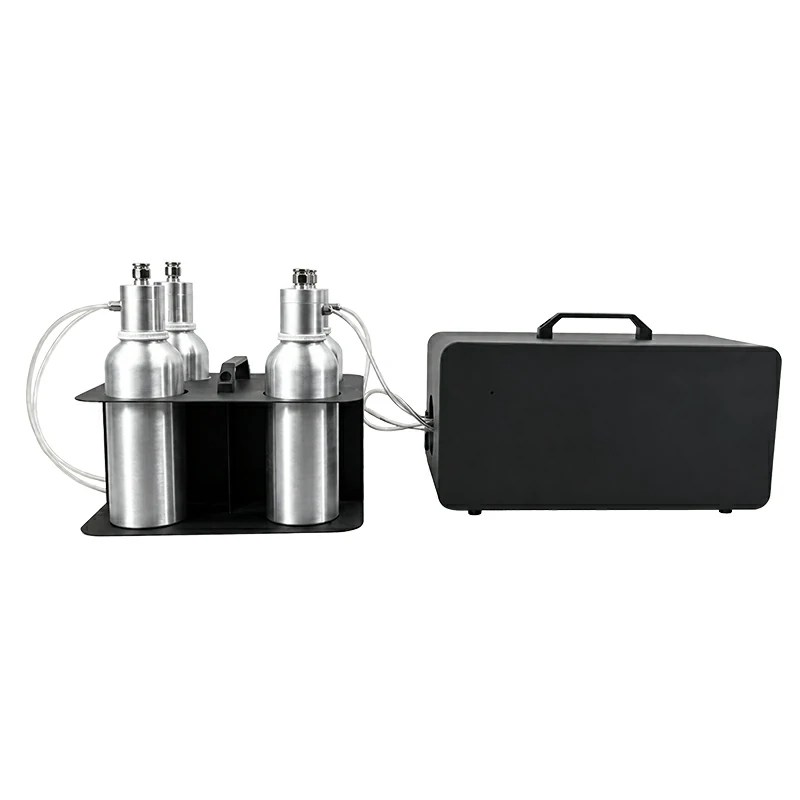

4. 4 × 1000 ml High-Capacity Oil System & Durable Sheet Metal Build

Built for demanding commercial environments, the VAC8000 features a premium matte sheet metal housing paired with a dedicated external rack holding four 1,000 ml aluminum fragrance bottles (4,000 ml combined capacity). This high-capacity design supports long-term continuous operation and significantly reduces maintenance and refilling frequency.

How VAC8000 HVAC Scent Diffusion Works

The VAC8000 integrates seamlessly with central air conditioning systems through a streamlined 5-stage diffusion process:

1. Fragrance Oil Supply: Up to four distinct fragrance oils are loaded into the 4 × 1,000 ml bottles.

2. Cold-Air Atomization: Waterless and heat-free cold-air technology transforms the liquid oil into ultra-fine atomized particles.

3. Into the Air Duct: The atomized fragrance is injected directly into the HVAC air ducts through dedicated tubing.

4. HVAC Airflow Diffusion: The fine mist travels through the ductwork and blends evenly with the cool air stream.

5. Zoned Scenting: Fragranced air is distributed evenly to each designated room or zone with concealed equipment mounting.

Why Choose the VAC8000 Over a Standard Single-Bottle HVAC Diffuser?

Technical Specifications

FAQ

Q1: How many areas or fragrance types can the Vinescents VAC8000 manage at once? A: The VAC8000 features 4 independent atomization systems and holds four 1,000 ml fragrance oil bottles. It can diffuse up to four different fragrances simultaneously into four separate zones—such as a hotel lobby, corridor, meeting room, and VIP area—via dedicated HVAC duct tubing.

Q2: What is the maximum coverage area of the VAC8000 HVAC scenting system? A: A single VAC8000 unit provides coverage for large commercial spaces up to 4,000 m² (12,000 m³ or 40,000 ft²) when connected to your central HVAC ductwork.

Q3: Does the VAC8000 require water or heating during operation? A: No. The VAC8000 uses professional waterless and heat-free cold-air atomization technology to produce an ultra-fine mist that blends directly with cool air in your HVAC ducts for even, consistent scent distribution.

Q4: How do facility managers control the scent schedule and intensity? A: The system supports Bluetooth Smart Control via a mobile app, allowing operators to remotely manage working schedules and adjust fragrance intensity for different zones.

Q5: What are the dimensions and installation requirements for the VAC8000? A: The VAC8000 is a floor-standing, AC-powered (220V/140W) system designed for concealed connection to HVAC air ducts. The main unit measures 424 × 203 × 255 mm (net weight 8.55 kg), and the 4-bottle rack measures 270 × 320 × 185 mm excluding bottles (net weight 2.45 kg).
