Product Overview

The Vinescents VC5L combines sleek industrial aesthetics with high-efficiency fragrance dispersion. Constructed with an aviation-grade aluminum alloy housing and an elegant frosted finish, the VC5L fits securely into car cup holders, office desks, and compact living environments. Powered by an integrated 500mAh rechargeable lithium battery and smart motion-sensing technology, it delivers quiet, even atomization wherever you go.

Key Product Advantages

• Aviation-Class Aluminum Shell: Engineered with a sturdy, frosted aluminum finish that resists wear while providing a modern, premium look.

• Intelligent Motion Sensor & Silent Atomization: Operates at under 35dBA to ensure quiet diffusion that automatically activates to refresh spaces without noise disruption.

• Touch-Controlled 3-Speed Intensity: One-touch switching between light, heavy, and intelligent fragrance output.

• Portable & Type-C Rechargeable: Built-in 500mAh battery powered by a 5V/1.5W Type-C interface for true cordless mobility.

• Dual-Use Compact Size: Dimensions of φ69*130mm allow effortless placement in vehicle cup holders, desktops, and bedside tables.

Three-Speed Adjustable Working Modes

The touch-sensitive switch allows users to adapt scent intensity to personal preferences. Every mode is programmed with an automatic 4-hour shut-off feature:

• Mode 01 — Light Fragrance Mode: Sprays for 5 seconds every 3 minutes (Stops automatically after 4 hours).

• Mode 02 — Heavy Fragrance Mode: Sprays for 8 seconds every 3 minutes (Stops automatically after 4 hours).

• Mode 03 — Intelligent Mode: Sprays for 10 seconds every 3 minutes (Stops automatically after 4 hours).

Step-by-Step Oil Replacement Guide

Quick disassembly design: Lift > Twist > Reverse > Rotate > Cover

1. Grasp: Grasp the atomization head firmly by hand.

2. Extract: Pull the atomization head straight upward (do not tilt or flip to prevent liquid leakage).

3. Twist: Rotate counterclockwise to remove the 20ml essential oil bottle and refill.

4. Lock: Screw the bottle clockwise securely back into the atomizer head and place it back into the cylinder.

Technical Specifications

Parameter	Specification
Product Model	Vinescents VC5L (Motion Sensor) / VF50L
Dimensions	φ69 × 130 mm
Net Weight	0.4 kg
Housing Material	Aviation-class Aluminum Alloy
Effective Coverage	20 m² / 60 m³ / 200 ft²
Essential Oil Capacity	20 ML
Oil Consumption Rate	0.05 – 0.12 ml/h
Operating Noise	< 35 dBA
Battery Capacity	500 mAh Rechargeable Lithium
Power Supply & Voltage	Type-C Charging / 5V 1.5W

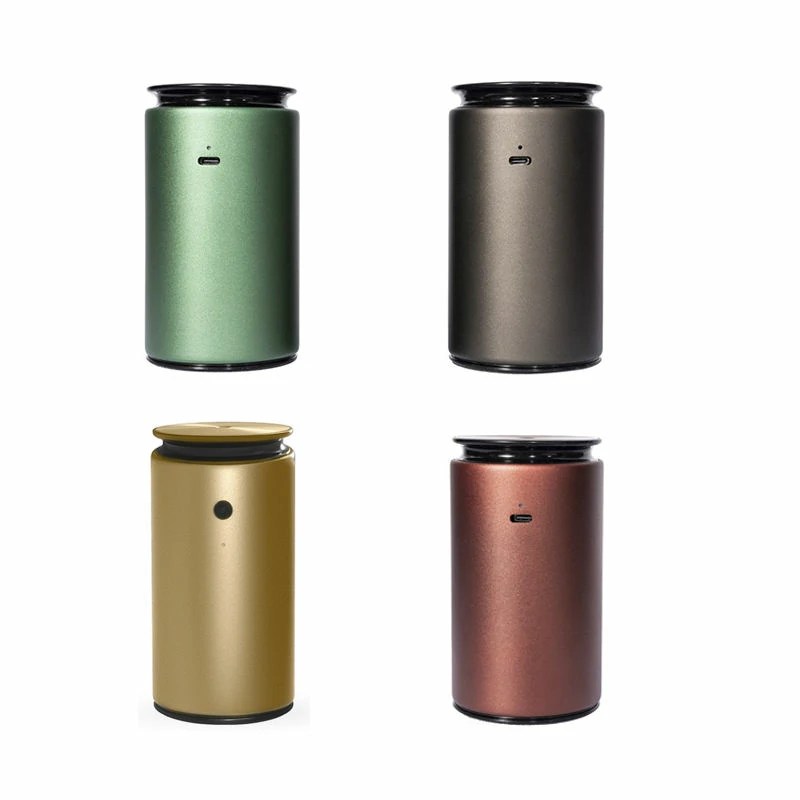

Available Colorways	Champagne Gold, Burgundy Red, Space Gray, Forest Green

Customization & OEM/ODM Services

• Logo Customization: Precision laser engraving and silk-screen printing on the aluminum shell.

• Color Customization: Custom anodized exterior colors available for bulk distribution orders.

• Packaging & Accessories: Custom gift boxes, private label instruction manuals, and branded USB charging cables.

FAQ

Q: What is the oil capacity and consumption rate of the Vinescents VC5L?

A: The device includes a 20ml refillable bottle and consumes between 0.05 to 0.12 ml of essential oil per hour depending on the active setting.

Q: Does the Vinescents VC5L fit standard vehicle cup holders?

A: Yes. With a diameter of φ69mm and a height of 130mm, it fits the vast majority of standard automotive cup holders and compact desk areas.

Q: How does the auto-off function operate?

A: Across all three operating modes (Light, Heavy, and Intelligent), the system automatically powers down after 4 hours of continuous operation to conserve oil and extend battery life.
